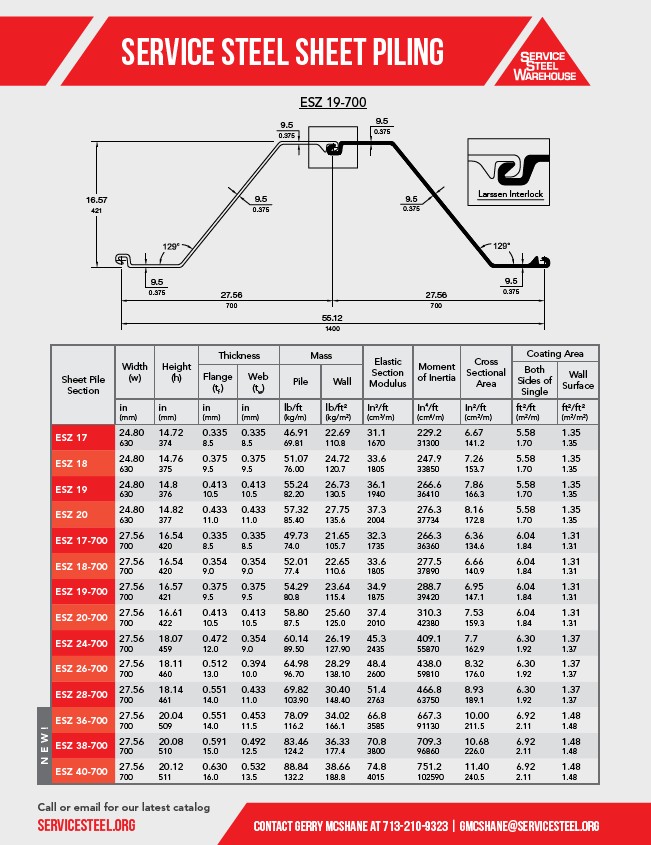

SERVICE STEEL SHEET PILING
Larssen Interlock
Sheet Pile
Section
Width
(w)
Height
(h)
Thickness Mass
Elastic
Section
Modulus
Moment
of Inertia
Cross
Sectional
Area
Coating Area
Both
Sides of
Single
Wall
Surface
Flange
(tf )
Web
(tw) Pile Wall
in
(mm)
in
(mm)
in
(mm)
in
(mm)
lb/ft
(kg/m)
lb/ft²
(kg/m²)
In³/ft
(cm³/m)
In4/ft
(cm4/m)
In²/ft
(cm²/m)
ft²/ft
(m²/m)
ft²/ft²
(m²/m²)
ESZ 17 24.80
630
14.72
374
0.335
8.5
0.335
8.5
46.91
69.81
22.69
110.8
31.1
1670
229.2
31300
6.67
141.2
5.58
1.70
1.35
1.35
ESZ 18 24.80
630
14.76
375
0.375
9.5
0.375
9.5
51.07
76.00
24.72
120.7
33.6
1805
247.9
33850
7.26
153.7
5.58
1.70
1.35
1.35
ESZ 19 24.80
630
14.8
376
0.413
10.5
0.413
10.5
55.24
82.20
26.73
130.5
36.1
1940
266.6
36410
7.86
166.3
5.58
1.70
1.35
1.35
ESZ 20 24.80
630
14.82
377
0.433
11.0
0.433
11.0
57.32
85.40
27.75
135.6
37.3
2004
276.3
37734
8.16
172.8
5.58
1.70
1.35
1.35
ESZ 17-700 27.56
700
16.54
420
0.335
8.5
0.335
8.5
49.73
74.0
21.65
105.7
32.3
1735
266.3
36360
6.36
134.6
6.04
1.84
1.31
1.31
ESZ 18-700 27.56
700
16.54
420
0.354
9.0
0.354
9.0
52.01
77.4
22.65
110.6
33.6
1805
277.5
37890
6.66
140.9
6.04
1.84
1.31
1.31
ESZ 19-700 27.56
700
16.57
421
0.375
9.5
0.375
9.5
54.29
80.8
23.64
115.4
34.9
1875
288.7
39420
6.95
147.1
6.04
1.84
1.31
1.31
ESZ 20-700 27.56
700
16.61
422
0.413
10.5
0.413
10.5
58.80
87.5
25.60
125.0
37.4
2010
310.3
42380
7.53
159.3
6.04
1.84
1.31
1.31
ESZ 24-700 27.56
700
18.07
459
0.472
12.0
0.354
9.0
60.14
89.50
26.19
127.90
45.3
2435
409.1
55870
7.7
162.9
6.30
1.92
1.37
1.37
ESZ 26-700 27.56
700
18.11
460
0.512
13.0
0.394
10.0
64.98
96.70
28.29
138.10
48.4
2600
438.0
59810
8.32
176.0
6.30
1.92
1.37
1.37
ESZ 28-700 27.56
700
18.14
461
0.551
14.0
0.433
11.0
69.82
103.90
30.40
148.40
51.4
2763
466.8
63750
8.93
189.1
6.30
1.92
1.37
1.37
ESZ 36-700 27.56
700
20.04
509
0.551
14.0
0.453
11.5
78.09
116.2
34.02
166.1
66.8
3585
667.3
91130
10.00
211.5
6.92
2.11
1.48
1.48
ESZ 38-700 27.56
700
20.08
510
0.591
15.0
0.492
12.5
83.46
124.2
36.33
177.4
70.8
3800
709.3
96860
10.68
226.0
6.92
2.11
1.48
1.48
ESZ 40-700 27.56
700
20.12
511
0.630
16.0
0.532
13.5
88.84
132.2
38.66
188.8
74.8
4015
751.2
102590
11.40
240.5
6.92
2.11
1.48
1.48
ESZ 19-700
9.5
0.375
55.12
1400
27.56
700
27.56
700
9.5
0.375
9.5
0.375
9.5
0.375
9.5
0.375
16.57
421
9.5
0.375
N E W !
Call or email for our latest catalog
Servicesteel.org Contact Gerry McShane at 713-210-9323 | gmcshane@servicesteel.org
