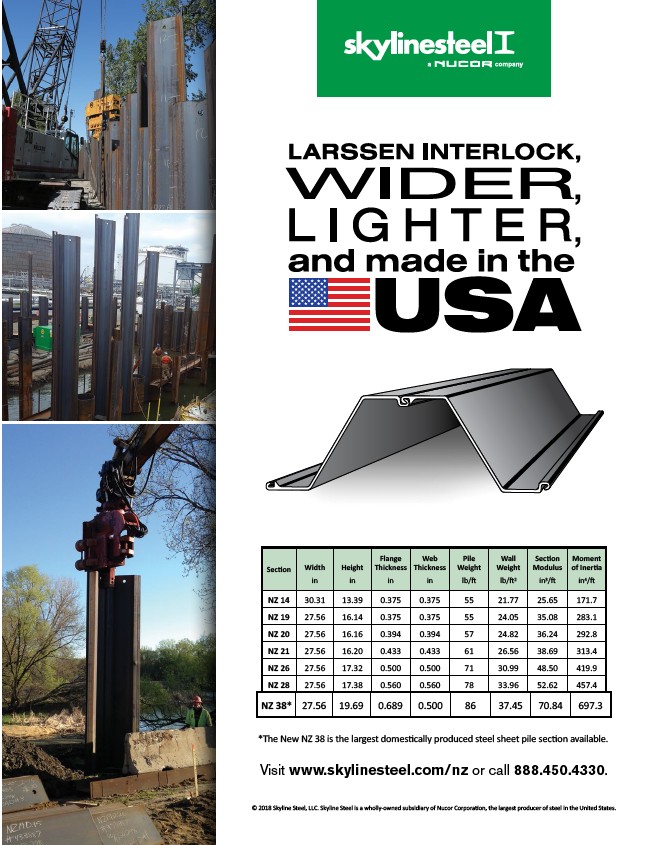

Section Width
in
Height
in
Flange
Thickness
in
Web
Thickness
in
Pile
Weight
lb/ft
Wall
Weight
lb/ft2
Section
Modulus
in3/ft
Moment
of Inertia
in4/ft
NZ 14 30.31 13.39 0.375 0.375 55 21.77 25.65 171.7
NZ 19 27.56 16.14 0.375 0.375 55 24.05 35.08 283.1
NZ 20 27.56 16.16 0.394 0.394 57 24.82 36.24 292.8
NZ 21 27.56 16.20 0.433 0.433 61 26.56 38.69 313.4
NZ 26 27.56 17.32 0.500 0.500 71 30.99 48.50 419.9
NZ 28 27.56 17.38 0.560 0.560 78 33.96 52.62 457.4
NZ 38* 27.56 19.69 0.689 0.500 86 37.45 70.84 697.3
*The New NZ 38 is the largest domestically produced steel sheet pile section available.
Visit www.skylinesteel.com/nz or call 888.450.4330.
© 2018 Skyline Steel, LLC. Skyline Steel is a wholly-owned subsidiary of Nucor Corporation, the largest producer of steel in the United States.
