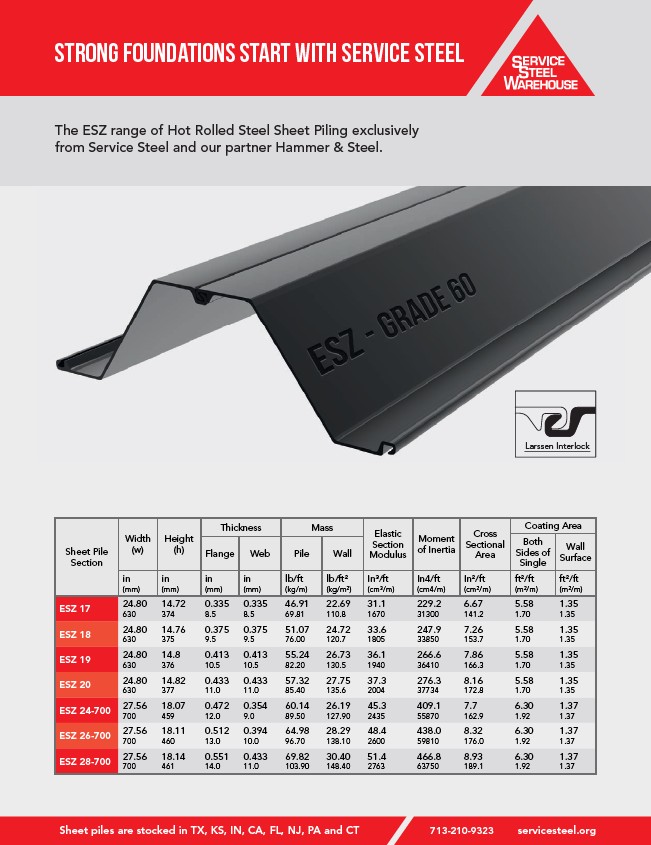

Strong Foundations Start with Service Steel
Larssen Interlock
The ESZ range of Hot Rolled Steel Sheet Piling exclusively
from Service Steel and our partner Hammer & Steel.
Sheet Pile
Section
Width
(w)
Height
(h)
Thickness Mass
Elastic
Section
Modulus
Moment
of Inertia
Cross
Sectional
Area
Coating Area
Both
Sides of
Single
Wall
Flange Web Pile Wall Surface
in
(mm)
in
(mm)
in
(mm)
in
(mm)
lb/ft
(kg/m)
lb/ft²
(kg/m²)
In³/ft
(cm³/m)
In4/ft
(cm4/m)
In²/ft
(cm²/m)
ft²/ft
(m²/m)
ft²/ft
(m²/m)
ESZ 17 24.80
630
14.72
374
0.335
8.5
0.335
8.5
46.91
69.81
22.69
110.8
31.1
1670
229.2
31300
6.67
141.2
5.58
1.70
1.35
1.35
ESZ 18 24.80
630
14.76
375
0.375
9.5
0.375
9.5
51.07
76.00
24.72
120.7
33.6
1805
247.9
33850
7.26
153.7
5.58
1.70
1.35
1.35
ESZ 19 24.80
630
14.8
376
0.413
10.5
0.413
10.5
55.24
82.20
26.73
130.5
36.1
1940
266.6
36410
7.86
166.3
5.58
1.70
1.35
1.35
ESZ 20 24.80
630
14.82
377
0.433
11.0
0.433
11.0
57.32
85.40
27.75
135.6
37.3
2004
276.3
37734
8.16
172.8
5.58
1.70
1.35
1.35
ESZ 24-700 27.56
700
18.07
459
0.472
12.0
0.354
9.0
60.14
89.50
26.19
127.90
45.3
2435
409.1
55870
7.7
162.9
6.30
1.92
1.37
1.37
ESZ 26-700 27.56
700
18.11
460
0.512
13.0
0.394
10.0
64.98
96.70
28.29
138.10
48.4
2600
438.0
59810
8.32
176.0
6.30
1.92
1.37
1.37
ESZ 28-700 27.56
700
18.14
461
0.551
14.0
0.433
11.0
69.82
103.90
30.40
148.40
51.4
2763
466.8
63750
8.93
189.1
6.30
1.92
1.37
1.37
Sheet piles are stocked in TX, KS, IN, CA, FL, NJ, PA and CT 713-210-9323
