This phase, completed in December 2014, used 100-ton
Linkbelt and APE 150 vibratory hammer for installing the flat
sheet.
Phase 3
With a bulkhead in place, the pile driving and drilling for the pier
can begin.
“The pier is about 300 feet along the shoreline and extends
100 feet offshore. Underpinning that footprint are three rows of
pipe pile. The first row are 36-inch by one-inch walls, the second
row 30-inch by one-inch walls and the third 36-inch by one-inch
walls,” said Martin.
The first row of piles is partially supported by the bulk-
Geotechnical Engineering
Soil and Rock Mechanics
Shoring and Underpinning Design
Pile Load Testing and Inspection
Vibration Monitoring
Construction Materials Testing
Third Party Inspections
Survey Layout
70 Pleasant Hill Road, Mountainville, NY 10953
1-800-829-6531
Practical Solutions, Exceptional Service www.tectonicengineering.com
PROJECT SPOTLIGHT

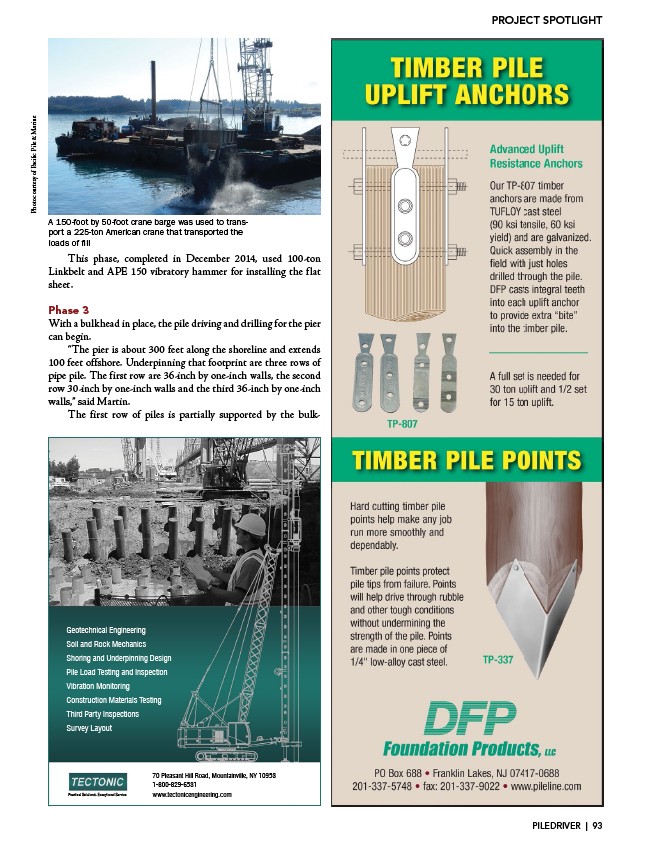

A 150-foot by 50-foot crane barge was used to transport
a 225-ton American crane that transported the
loads of fill
Photo courtesy of Pacific Pile & Marine
